Industrial History Online
Kew Gardens Station
Key Words :- railway station
Address :- Station Parade, London, Greater London
Grid Ref :- TQ 19188 76741
Co-ordinates :- Lat 51.477082 , Long -0.285154
Local Authority :- Richmond upon Thames London Borough Council
Pre 1974 County :- Surrey
Site Status :- Listed - Grade II
Historic England List No - 1031878, 1031879,
Site Condition :- Operational site, in use for original purpose
Site Dates :- 1868-9 -
Description and History of Site:-
Railway station. 1868-9 for the London South-Western Railway.

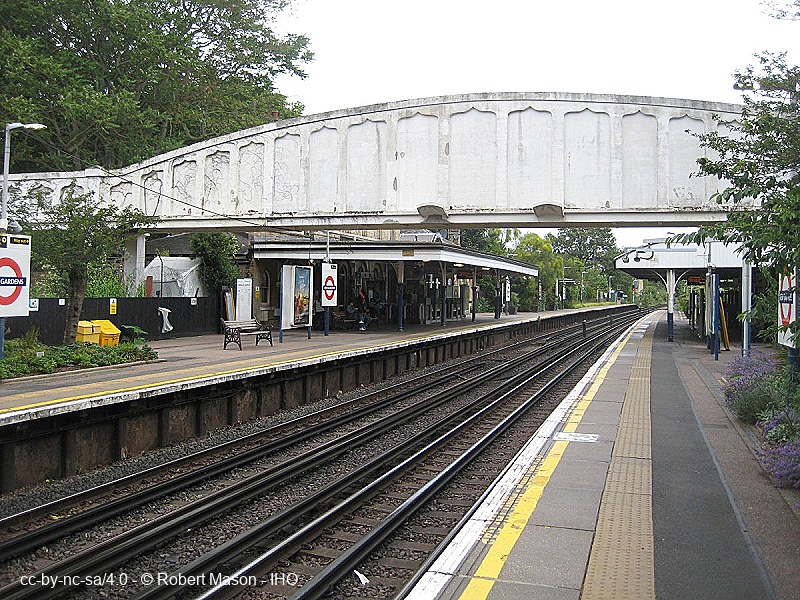

The footbridge is an early and rare British example of reinforced concrete, using a method pioneered by the French engineer François Hennebique. The bridge is remarkable for its high sides and for the curious projections extending over the railway lines. Both features were designed to protect pedestrians from the dirt of the railway's steam engines.
Note the refreshment pavilion, contemporary with the station house, provided for visitors to the Royal Botanic Gardens (qv). The station is little altered since it was opened and, together with the parades of shops in the approach roads on each side of the line, forms a delightful area of outer-suburban townscape. (cf. The only other extant (but mutilated) original building of the Kensington and Richmond Railway - the booking hall, formerly the station house at Turnham Green (now District Line)).
Information panel:
Kew Gardens station opened on 1 January 1869. It was constructed by the London and South Western Railway (LSWR) as part of a route linking Richmond to Shepherd's Bush. The District Railway, Metropolitan Railway, North London Railway, and the Great Western Railway all called at the station from the 1870s to the early 1900s. In 1905, the District Railway electrified the tracks at the station so that its new trains services could run along the line, although other companies kept running steam service at the station until 1916.
Further Reading and References:-
http://www.glias.org.uk/news/097news.html#E
Help us improve this entry
Grid Ref :- TQ 19188 76741
Co-ordinates :- Lat 51.477082 , Long -0.285154
Local Authority :- Richmond upon Thames London Borough Council
Pre 1974 County :- Surrey
Site Status :- Listed - Grade II
Historic England List No - 1031878, 1031879,
Site Condition :- Operational site, in use for original purpose
Site Dates :- 1868-9 -
Railway station. 1868-9 for the London South-Western Railway.
The footbridge is an early and rare British example of reinforced concrete, using a method pioneered by the French engineer François Hennebique. The bridge is remarkable for its high sides and for the curious projections extending over the railway lines. Both features were designed to protect pedestrians from the dirt of the railway's steam engines.
Note the refreshment pavilion, contemporary with the station house, provided for visitors to the Royal Botanic Gardens (qv). The station is little altered since it was opened and, together with the parades of shops in the approach roads on each side of the line, forms a delightful area of outer-suburban townscape. (cf. The only other extant (but mutilated) original building of the Kensington and Richmond Railway - the booking hall, formerly the station house at Turnham Green (now District Line)).
Information panel:
Kew Gardens station opened on 1 January 1869. It was constructed by the London and South Western Railway (LSWR) as part of a route linking Richmond to Shepherd's Bush. The District Railway, Metropolitan Railway, North London Railway, and the Great Western Railway all called at the station from the 1870s to the early 1900s. In 1905, the District Railway electrified the tracks at the station so that its new trains services could run along the line, although other companies kept running steam service at the station until 1916.
http://www.glias.org.uk/news/097news.html#E
The compilers welcome corrections or additional information on all sites.
Any information provided will be verified before appearing on the web site.
Email comments
Contributor :- GLIAS Database - 2 October 2025
Copyright :- cc-by-nc-sa 4.0 © GLIAS Database
